Single Mode LC/APC Duplex Plastic Fiber Optic Adapter Without Flange

Single Mode LC/APC Duplex Plastic Fiber Optic Adapter Without Flange

Single Mode LC/APC Duplex Plastic Fiber Optic Adapter without flange Fiber optic adapter can be inserted into different

Send your inquiry

DESCRIPTION

Basic Info
Model NO. LC APC
Ferrule Endface APC
Shape Circular
Application Fiber Distribution Frame, Network Equipment, Fiber Module
Brand OEM
Wavelength 850nm/1310nm/1550nm
Material Plastic
Transport Package Carton
Specification FTTH FTTB FTTX Network
Trademark SMD
Origin Shenzhen China
HS Code 8544700000
Production Capacity 200000/Month
Product Description
Single Mode LC/APC Duplex Plastic Fiber Optic Adapter without flange

Fiber optic adapter can be inserted into different types of fiber optic connector. Achieve the conversion of different interfaces like SC, FC, LC, ST,MPO.

Features

Zirconia ceramic ferrule with high durability and reliability.

UPC/APC type available

Applications

Telecommunication networks.

CATV systerm

FTTH (fiber to the home)

Local Area Network

Telecommunication Networks

Equipment Test

Specifications

Connector Type

FC, SC, ST, LC, MPO, etc.

Operating Wavelength

1260nm-1650nm

Insertion Loss

≤0.2dB, max 0.3dB

Return Loss

PC≥45dB ,UPC≥50dB,APC≥65dB

Exchangeability

≤0.20dB

Vibration

10-60Hz, 1.5mm ≤0.10dB

Tensile

≤0.10dB (0-15Hg, except Ø0.9mm)

Plug times

>1000 (Times), ≤0.20dB

Storage Temperature

-40°C ~ +85°C

Operating Temperature

-40°C ~ +85°C

Relative humidity

95%, (+25°C~ +65°C, after 100h)

Sleeve Material: Ceramic or beryllium bronze;

Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility;

Working Wavelength: 1200~1600nm;

Working Condition: -40°C to +75°C;

Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB;

Repeatability: No more than 0.2dB ;

The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA.

Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green

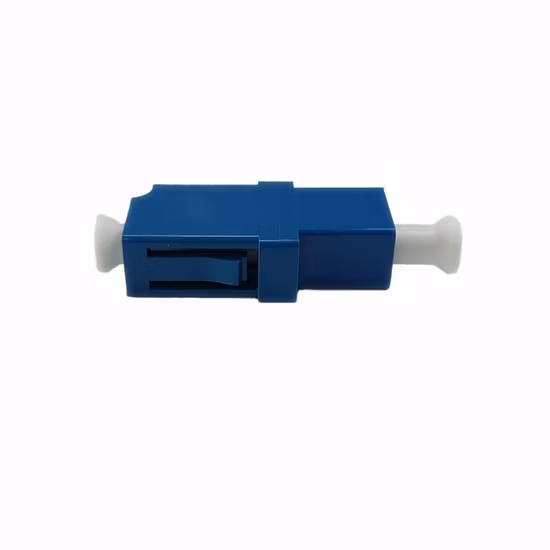

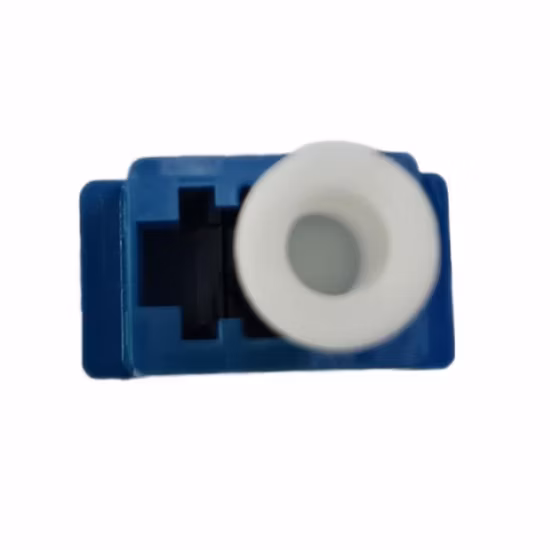

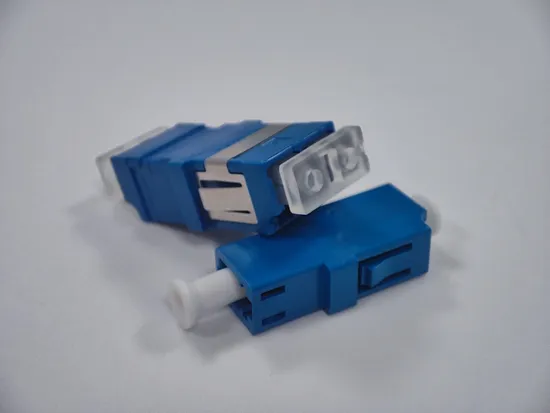

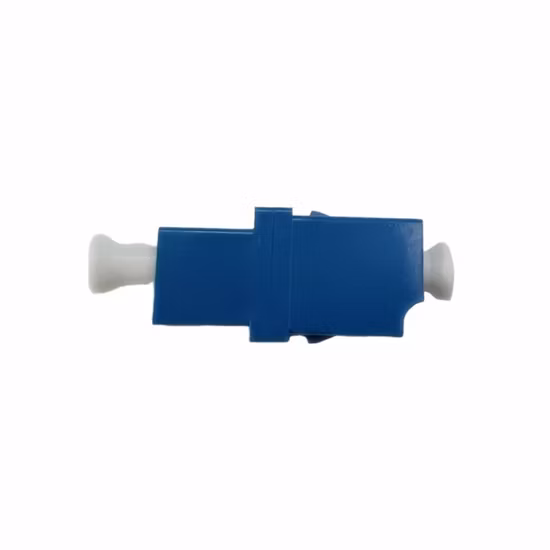

Single Mode LC/APC Duplex Plastic Fiber Optic Adapter Without Flange

Single Mode LC/APC Duplex Plastic Fiber Optic Adapter Without Flange

Single Mode LC/APC Duplex Plastic Fiber Optic Adapter Without Flange

Single Mode LC/APC Duplex Plastic Fiber Optic Adapter Without Flange

Single Mode LC/APC Duplex Plastic Fiber Optic Adapter Without Flange
