DESCRIPTION

Basic Info
Model NO. FC, SC, ST, LC, MU, MTRJ, DIN, MPO
Material Metal, Plastic
Mode Singlemode/Multimode/Om3/Om4/APC
Adapter Type Standard Adapter or Hybrid Adapter
Transport Package Plastic Container + Carton
Specification RoHS
Trademark HNK or OEM
Origin Shenzhen, China
HS Code 85369000
Production Capacity 200000PCS/Month
Product Description

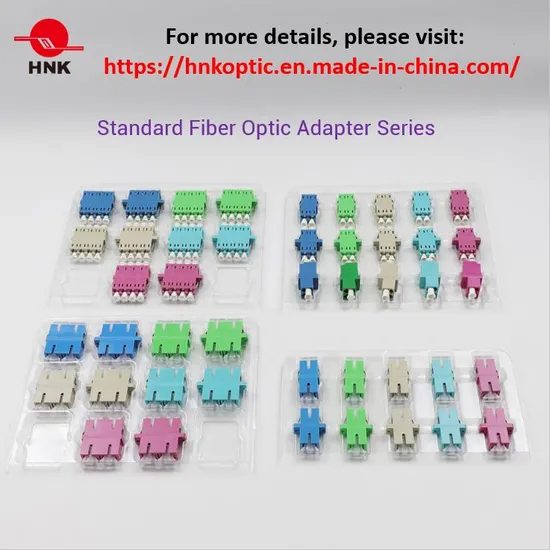

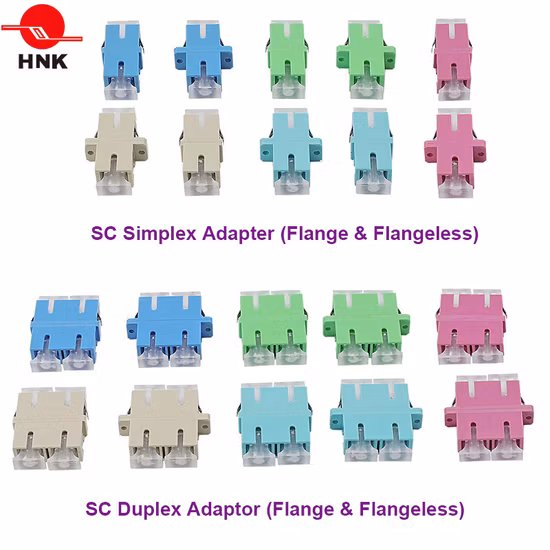

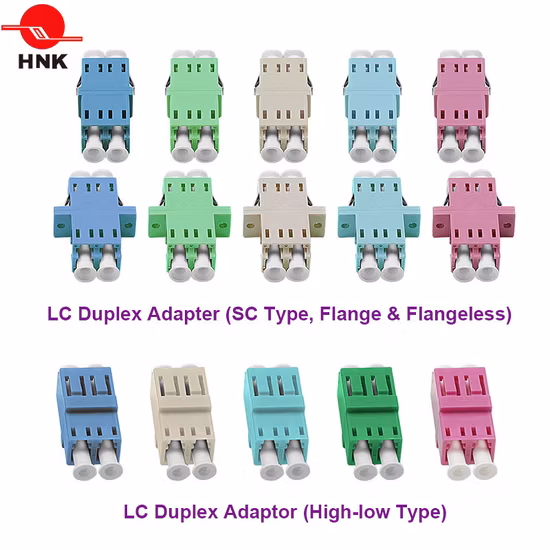

fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch panel or any other outlet to mate two connectors. Fiber Optic adaptors are available for all standard connector types in both singlemode and multimode including Simplex and duplex versions. Our fiber optic adapters are made with high precision machines which ensure precise alignment for the connectors when they are plugged in. fiber Optic Adaptors are color coded allowing easy identification of the adaptor type. We also offer hybrid and other special types of fiber optic adapters, such as Bare, shuttered and metal housing fiber optic adapters.

Standards Compliance
TIA/EIA-568-C.3 TIA/EIA-604 RoHS, REACH SvHC compliant

Features
▪ Made of high quality Zirconia ceramic sleeves▪ 100% tested on optical performance (Insertion Loss & Return Loss)▪ End-face geometry requirement complies to Telcordia GR-326-CORE▪ For end-to-end fiber cable connectivity▪ Available in singlemode and multimode, including APC and various colours▪ Female to female & male to female adapters available▪ Hybrid, Shuttered and Metal adapters available▪ Coloured for easy indentification

Environmental & Mechanical Data
Operating Temperature -40 to +75º C
Storage Temperature: -40 to +85º C
Temperature Cycling (61300-2-18)-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)500 Mating Cycles, clean every 25, <0.2dB change

Ordering Information
Using the available configurations amend/create product codes using the formula below.Part Number: XX-AA-(BB)-(CD)E(FG)CL
Ordering Guide
XXAdapter Type Code AD, HAD, MAD
AAConnector Type A (Female or Male)FP,SP,SA,LP
BBConnector Type B (Female)FP,SP,SA,LP
CModeSM=Singlemode MM=Multimode OM3=Multimode 10G
DFiber Type (only apply to MAD Type Adapter)OM1=62.5/125 OM1 OM2=50/125 OM2 SM=9/125 Singlemode
EFiber CountSX=Simplex, DX=Duplex, QD=Quad
FAdapter ShapeF= flange type, S =Square Type, D=D type
GMaterialM=Metal, P=plastic
CLColor(CL)Blue for Singlemode PC Standard, Beige for Multimode Standard, Aqua for OM3/OM4 Standard and Green for Singlemode APC.(Metal Structure Unsuited)

Adapter Type Code

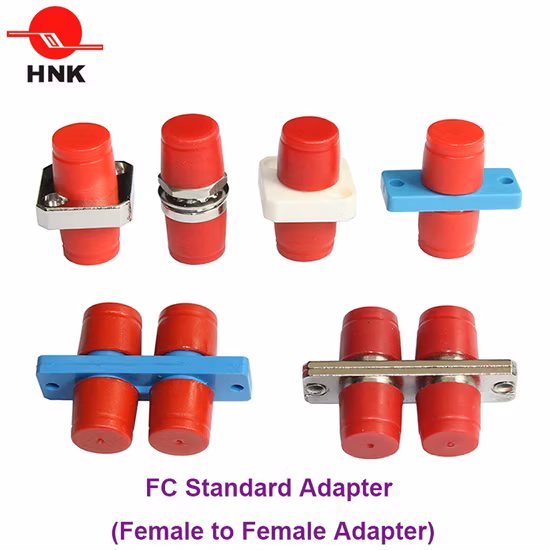

ADStandard Adapter (Female to Female Adapter)
HADHybrid Adapter(Female to Female Adapter)
MADMale To Female Adapter
BADBare Adapter
SADShuttered Adapter

Connector Type Code
FPFC/PC,FC/UPCFAFC/APC
SPSC/PC, SC/UPCSASC/APC
TPST/PC, ST/UPCTAST/APC
LPLC/PC, LC/UPCLALC/APC
MUMUMTMTRJ
DNDINE2E2000
